All Watts-Mueller pipe cutting machines are equipped with a cutting torch for plasma and oxy-fuel.
W-122 CNC Pipe Cutting
With Two-Axis Computer Control and manually controlled bevel angles, the W-122 is a two axis pipe cutter complete with 24ft capacity roller bed capable of cutting diameters from 1" pipe (1.31" O.D.) to 12.750" O.D.
The W-122 is a workhorse of a pipe cutting machine for many fabrication shops.

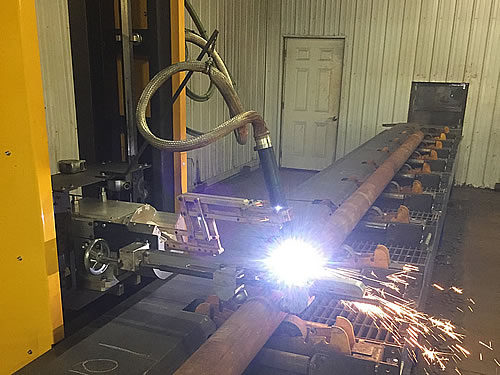

W-124 (6-Axis) CNC Pipe Cutting Machine
The W-124 6-Axis CNC pipe cutting machine is capable of quickly pipe with amazingly smooth bevels - cuts pipe from 2" to 12.75" OD.
This is a powerful machine that will cut repeatable cuts all day long. You can learn more about this efficient pipe cutting machine by reading the Empire Piers case study.
W-242 CNC Pipe Cutting
Two-Axis, computer and manually controlled bevel angles. Where thick pipe is used and the bevel gap must be precisely controlled for deep weld penetration, see the W-244.
W-244 (6 Axis) CNC Pipe Cutting Machine
The W-244 is controlled by a heavy-duty industrial computer designed to run in extremes of temperature, humidity and vibration. All controls are remotely mounted at the cutting head for easy access. The W-244 uses the latest computer motion-control systems along with an innovative floating headstock and cutting head design. Only a floating headstock and cutting head allows smooth accurate handling of irregular pipe that could cause erratic cutting with a typical headstock.
The 6-Axis W-244 is a versatile pipe cutting machine capable of cutting 2" to 24" OD pipe and put a clean bevel. This machine, operated with our 3D pipe cutting software, gives you the ability to save man-hours and material cost with an average ROI of less than three years.

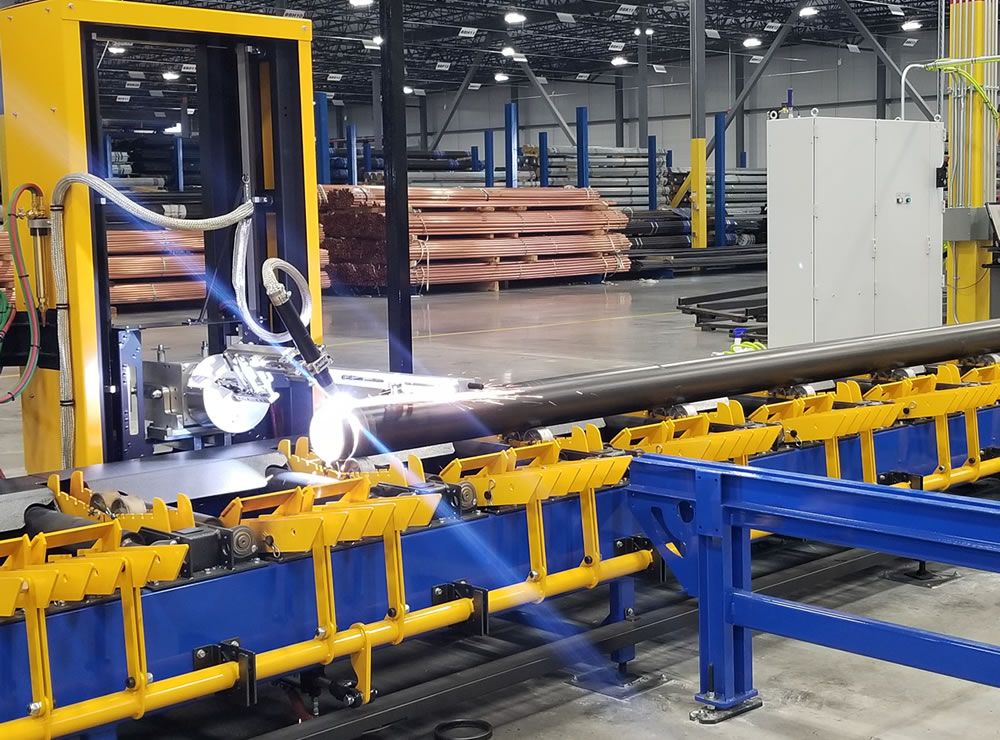

W-364 (6 Axis) CNC Pipe Cutting Machine
The W-364 can cut 36 inch pipe with an optimum bevel angle throughout the cut. This is ideal for large pipe requiring pass through pipe connections or "hole in" fittings.
This heavy-duty pipe cutting machine can be equipped with a 50' bed for material conveyance. Read how Shinn Mechanical stepped up their production with the W-364 machine.

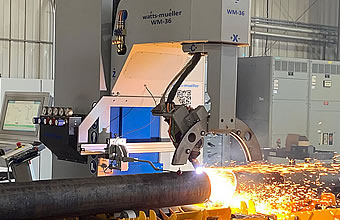

WM-36 6-Axis CNC Pipe Cutting Machine
As a blended Watts-Mueller machine, the WM-36 is a true 6-Axis Pipe Cutting Machine. The WM-36 will dramatically increase your pipe cutting and pipe beveling productivity, and increase your dimensional accuracies. The torch is oxy/fuel or the plasma capable.
WM-48 6-Axis CNC Pipe Cutting Machine

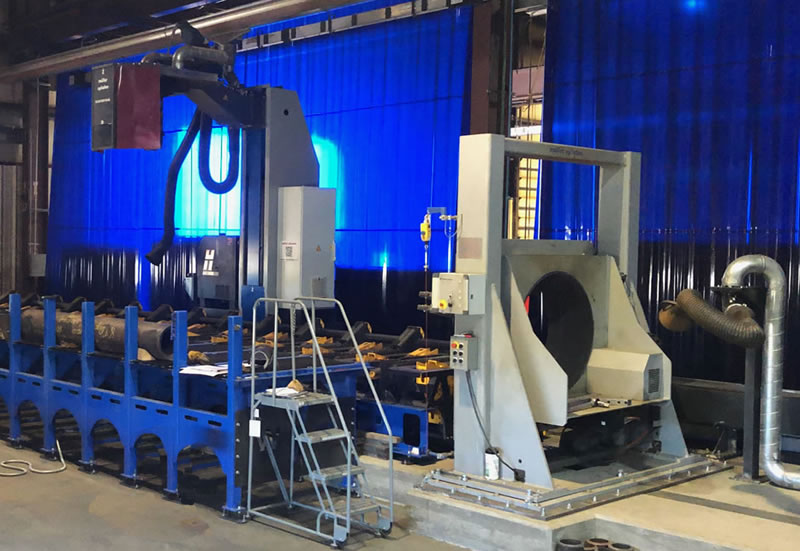

The blended Watts-Mueller WM-48 6-Axis Pipe & Vessel Shell Cutting Machine will dramatically increase your pipe cutting and pipe beveling productivity. It will also increase your dimensional accuracies and make the fit up much easier with the oxy/fuel or the plasma arc cutting processes. The 3rd and 4th Axis of motion allows the torch to rotate along the linear axis of the pipe and perpendicular to the linear axis to perform true beveled holes and end cuts.
Read how SSI Fabricated saves 160 manhours per week cutting vessels, holes and joints...all computerized with the Watts-Mueller 3D pipe cutting software.

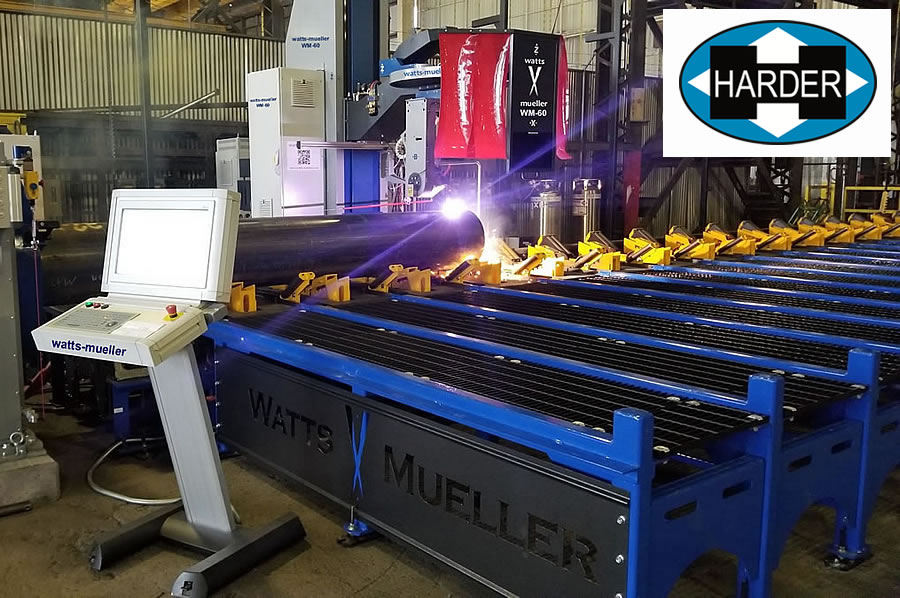

Newly installed WM-Series Machine (above) at Harder Mechanical in Portland, Oregon.
WM-Series Pipe Cutting Machines
All machines in the WM Series are blended Watts-Mueller machines with thermal 3D profile capability. WM Series machines are available for pipes from 3" to 100" OD.
The WM machines handle round pipe and are operated with our 3D macro-controlled software. Our pipe cutting software enables the machines to be programmed quickly and multiple cuts to be processed with relative ease and accuracy. WM Series machines can use plasma and/or oxyfuel.
Read how J.W. Williams saves time and money using the WM-60 system with a 40' conveyor rack and a large 40' machine bed.
See the Watts Manually Operated Machines.
